Q Series Full Color Mini WiFi LED Controller
The Q Series Full Color Mini WiFi LED Controller features include adjustable white, dimming, inputs for home automation, 20 color options, and 7 changing color patterns. The white setting can be adjusted from 2700K – 5000. This is all easily controlled with the wireless wall switch or our mobile app.
Technical Information
| POWER INFORMATION | |
|---|---|
| Voltage | 10 – 28V DC |
| Power Options | 96W |
| WiFi Frequency (where applicable) | 2.4 Ghz |
Configured to work with Common Cathode LED configurations (connections to light should be Negative, R, G, B)
120V AC to 24V DC Power Supply Included
| Q Series Controllers | Mini (4A) | Outdoor Mini (4A) | Duo (10A) |
|---|---|---|---|
| Accent Lights | 32 | 32 | 80 (40 per channel) |
| Deck Lights | 32 | 32 | 80 (40 per channel) |
| Deck Post Lights | 64 | 64 | 160 (80 per channel) |
| Bistro Lights | 150 ft. | 150 ft. | 400 ft. (200 ft. per channel) |
| LED Strips | 60 ft. | 60 ft. | 150 ft. (75 ft. per channel) |
| COLOR INFORMATION | |
|---|---|
| Dimming Capability | 15 Brightness Levels |
| White Color Options | 10 White Temperature |

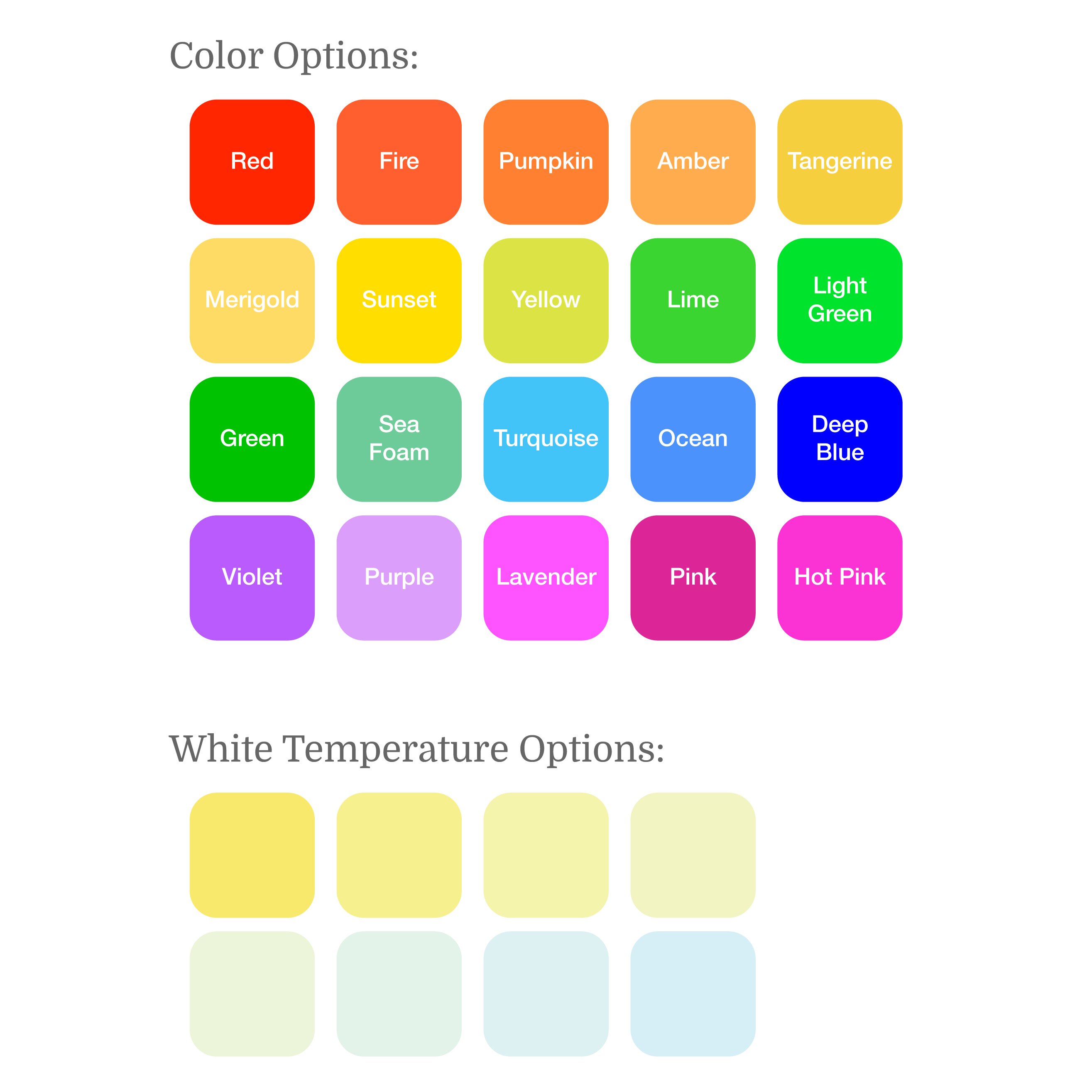

| Color Options | Red, Fire, Pumpkin, Amber, Tangerine, Marigold, Sunset, Yellow, Lime, Light Green, Green, Sea Foam, Turquoise, Ocean, Deep Blue, Violet, Purple, Lavender, Pink, Hot Pink |
| Pattern Options | [Blend] Red › Pink › Purple, [Blend] Deep Blue › Turquoise › Green, [Blend] All Colors, [Fade] Christmas, [Fade] Fourth of July, [Blink] Halloween |
| WALL SWITCH TECHNICAL DATA | |
|---|---|
| Battery Style | 2023 Battery |
| Typical Battery Life | 5 Years |
| Range | Up to 500 ft |
WIRING
We highly recommend using the direct burial/in wall 4 conductor wire when extra wire is required for connection to the lights.
In The Box
| 1 x Q Series Full Color Mini WiFi LED Controller 1 x Barrel Jack 24V Power Supply 2 x Mounting Screws 2 x Drywall Anchors 1 x Double Sided Tape (Large for Controllers) |
Q Series Full Color Mini WiFi LED Controller
Sale price$199.99 USD
